MAXHUB - V5 Classic Series

MAXHUB V5 Classic Series

| Sizes: 55/65/75/86 inches

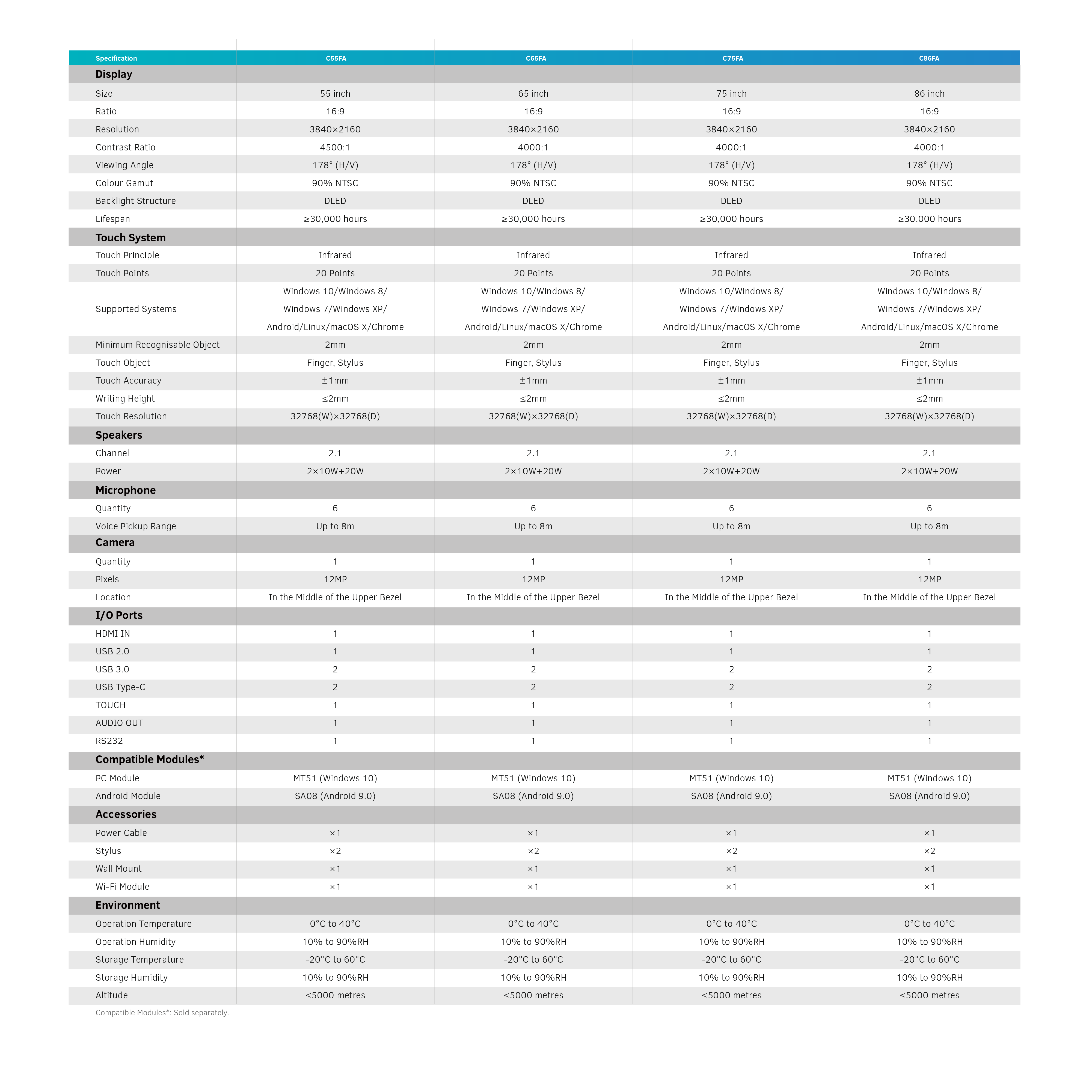

Specification

C Series

MAXHUB V5 Classic Series C Series

Legend Retold

Seam Speakers

Creative Acoustic Structure

12MP

Camera

Type-C

Bridging the Divide

90%

NTSC Colour Gamut

Auto Zoom In

On the Speaker

Android 9.0/Windows 10

Higher Performance

Seam Speakers

Creative Acoustic Structure

12MP

Camera

Type-C

Bridging the Divide

90%

NTSC Colour Gamut

Auto Zoom In

On the Speaker

Android 9.0/Windows 10

Higher Performance

Collaboration Starts with MAXHUB V5

The Classic Series inherits our concept of minimalist design while delivering intuitive interactions as well as outstanding sound and video performance. For both local meetings and teleconferences, participants may visualise their ideas instantly. Communication on a Classic Series defies distance with the updated audio & visual systems, giving the distant meeting attendees the feeling as if they were joining the session in person.

Creative Acoustics

2.1 Stereo Sound | 40W Powerful Speakers

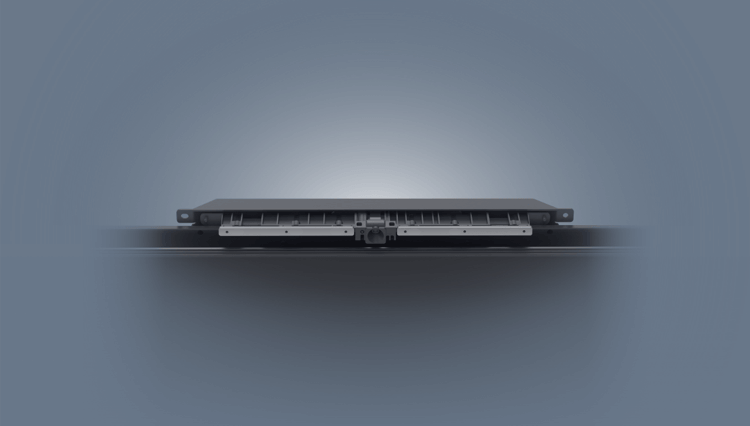

The V5 Series opens a much smaller seam for the sound waves to travel through. The sound waves go directly to the participants, instead of bouncing from the floor. The power is increased by 14% with 2.1 stereo sound.

2.1 Stereo Sound | 40W Powerful Speakers

Enhanced A&V Capacity

The 48MP camera offers unprecedented clarity, with no loss of clarity when zooming in on the speaker. MAXHUB V5 Classic Series operated automatically by locating the speaker via pattern recognition and voice localisation algorithms.

Auto Zoom in on the speaker² | Higher SNR³

Enhanced A&V Capacity

Auto Zoom in on the speaker²
Higher SNR³

Bridging the Divide

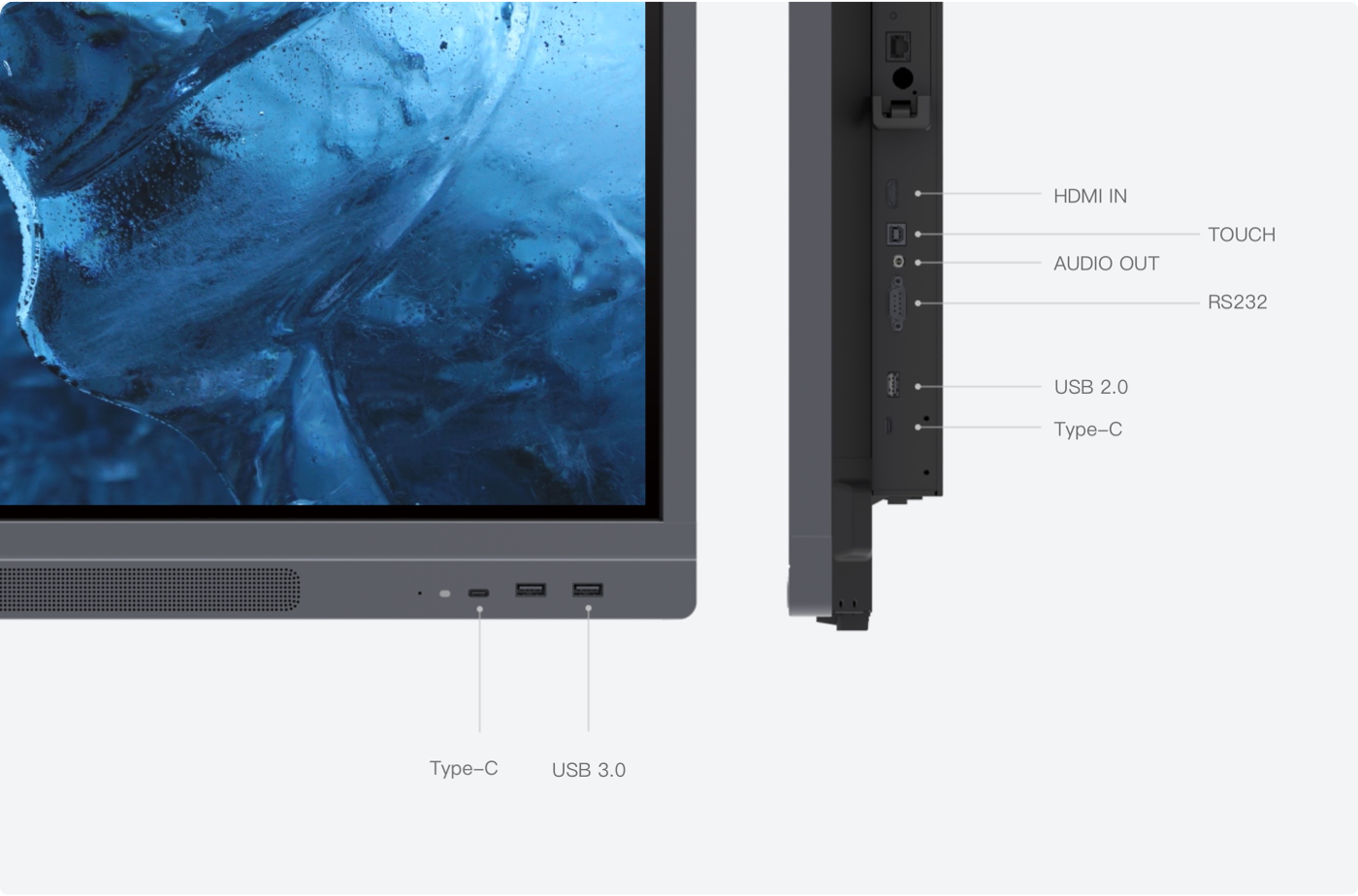

The MAXHUB V5 Classic Series includes 2 USB Type-C ports. By connecting to a laptop, it projects the laptop’s screen onto and plays sound from the MAXHUB V5 with reverse touch control. Now you can enjoy a wide-angle camera and 8 meters of voice pickup features on your laptop.

Carrying Video, Audio & Touch Signals | Accessing the Wide-angle Camera and Powerful Mic Array | Type C Extension Mode

Bridging the Divide

Carrying Video & Audio & Touch Signals
Accessing the Wide-angled Camera and Powerful Mic Array

A Natural Writing Experience

IR touch technology brings you a natural writing experience on Classic Series. The Classic series and Vogue series have reduced the touch height by 57%. The writing height is lowered to less than half of the previous generation, providing an even more paper-like writing experience. MAXHUB V5 Classic Series also increases the writing accuracy from the previous models. Now the writing accuracy is within plus or minus 1mm, which helps make fine annotations.≤2mm Writing Height | ±1mm Writing Accuracy

≤2mm Writing Height | ±1mm Writing Accuracy

A Natural Writing Experience

≤2mm Writing Height
±1mm Writing Accuracy

Bring Presentations to Life

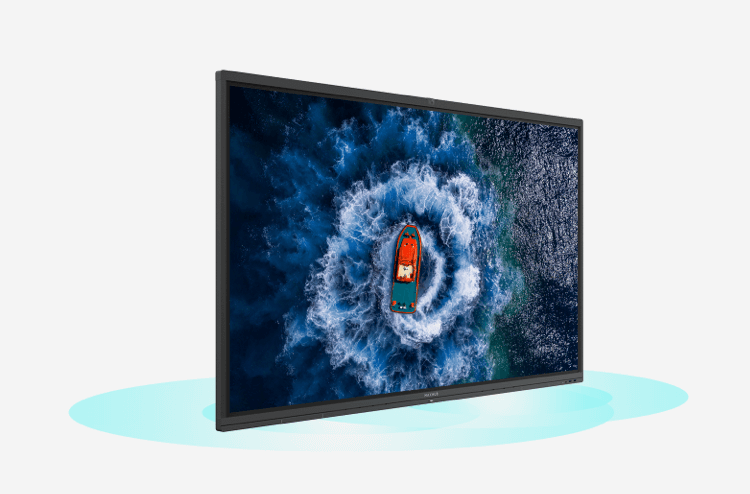

4K is now the default resolution across the MAXHUB interactive flat panel video conferencing solutions. The updated Zero Bonding technology means the air gap between the LCD screen and glass is zero, so you’ll be able to write just like you do on a piece of paper. The color gamut has also been increased by 20% compared to previous models for more vivid colors.

Zero Bonding⁵ | 90% NTSC Colour Gamut⁶ | 4K UHD

Normal Display

4K Wide Colour Gamut Display

Bring Presentations to Life

Zero Bonding⁵ | 90% NTSC Colour Gamut⁶ | 4K UHD

Voice Localisation⁷

MAXHUB Voice Localisation algorithm lays the foundation for zooming in on the speaker. By analysing the phase of the sound waves and how soon they arrive at each of the microphone elements, MAXHUB could tell the direction of the voice. In the meantime, it calls the auto gain technology into play, balancing the volume from both near and afar. The noise algorithm samples the environment noise and cancels out the unwanted hustle and bustle, therefore delivering a clearer voice.

6-element Microphone Array | Up to 8 metres Voice Pickup Voice Localisation |
Automatic Gain 丨 Noise Cancellation | Anti-reverberation

Voice Localisation⁷

6-element Microphone Array | Up to 8 metres Voice Pickup Voice Localisation |
Automatic Gain 丨 Noise Cancellation | Anti-reverberation

Enhanced Performance

Optional Android or Windows module will enhance the performance and reliability of the operating system. The Android module provides a straighter-forward way of human-computer interaction, whereas the PC module would offer greater security, broader compatibility and more powerful performance. Either module would make MAXHUB V5 a handy tool in the office.

Optional Android 9.0/Windows 10⁸

Enhanced Performance

Optional Android 9.0/Windows 10⁸

1. Seam speakers refer to the two front-facing speakers at the lower bezel of MAXHUB V5 featuring narrow openings.
2. MAXHUB V5 may zoom in on the speaker automatically during a meeting. The camera would locate the speaker via pattern recognition and voice localisation algorithms.
3. SNR refers to the Signal-to-Noise Ratio of the imaging system. The 12MP Camera of MAXHUB V5 Classic Series achieves higher SNR during a UHD or FHD teleconference by gathering more light information and reducing the electric noise in the imaging process.
4. A MAXHUB V5 Classic Series includes 2 USB Type-C ports. By connecting to a laptop, it projects the laptop’s screen onto and plays sound from the MAXHUB V5 with reverse touch control. Meanwhile, the laptop may access the built-in camera and microphone array as alternative video and audio signal input.
5. Zero bonding refers to the bonding technology that reduces the air gap between the liquid crystal display (LCD) and the tempered glass down to zero.
6. 90% NTSC refers to in the CIE 1931 chromaticity diagram, the area of the colour gamut of MAXHUB V5 Classic Series covers 90% area of NTSC standard range.
7. Voice localisation locates the direction speaker with the microphone array and guides the camera for auto zoom in on the speaker.
8. Android 9.0 runs on SA08 module whereas Windows 10 runs on MT51 module. Both modules are sold separately. You may insert either of the modules in the module slot.
